Steel Grating

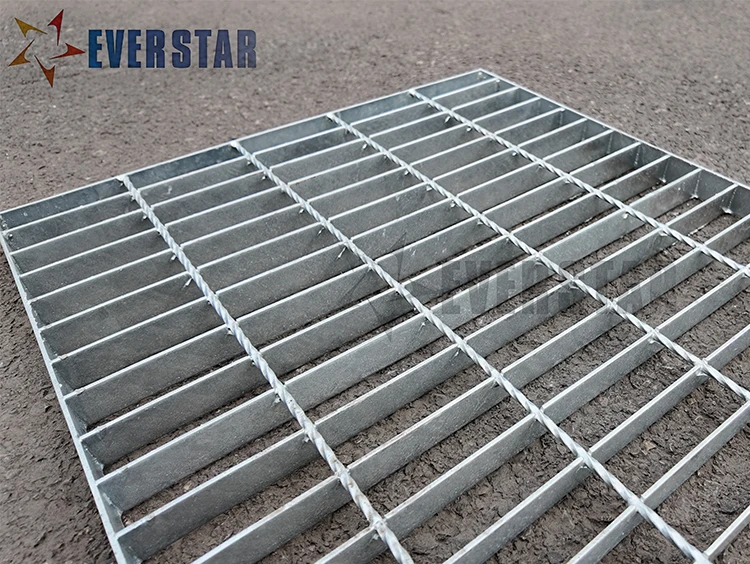

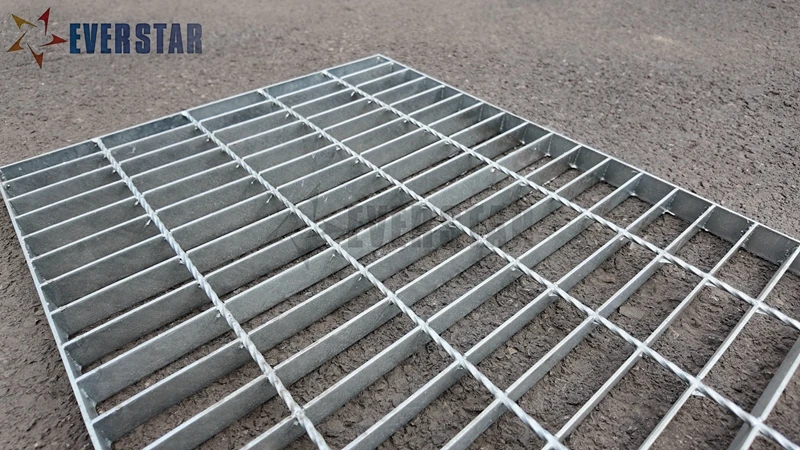

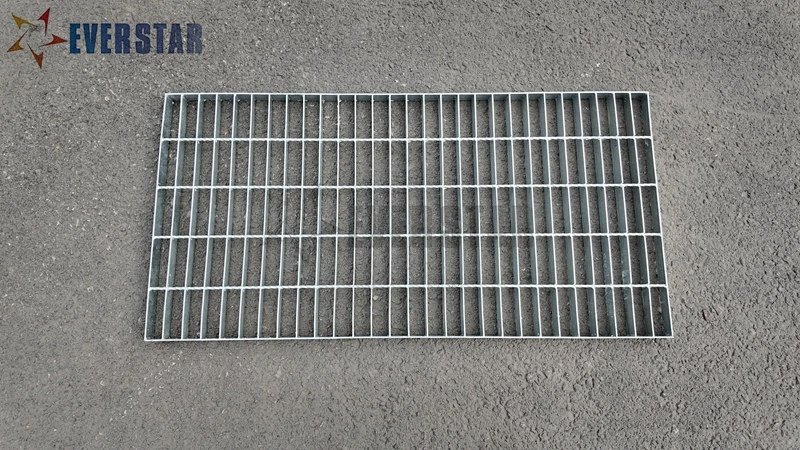

EVERSTAR Steel Grating is manufactured from load-bearing steel bars and transverse cross bars using resistance welding, pressure locking or other confirmed fabrication methods.

The open-grid structure provides high strength with relatively low weight while allowing water, air, light and debris to pass through. Bearing-bar size, spacing, cross-bar pitch, panel dimensions, edge banding, cut-outs, serrations, surface treatment and fixing accessories can all be customized.

Inquire Now

Specifications

Product Item	Details
Product Name	Steel Grating
Alternative Names	Bar Grating, Floor Grating, Metal Grating, Platform Grating
Brand	EVERSTAR
Material	Carbon Steel or Stainless Steel
Carbon-Steel Grade	Q235, ASTM A36, S235JR or Equivalent
Stainless-Steel Grade	SS304, SS316 or According to Requirements
Bearing-Bar Type	Plain Flat Bar, Serrated Flat Bar or I-Bar
Bearing-Bar Size	20 × 3 mm to 75 × 10 mm or Customized
Bearing-Bar Pitch	15–60 mm or Customized
Cross-Bar Type	Twisted Square Bar, Round Bar or Flat Bar
Cross-Bar Pitch	50–100 mm or Customized
Panel Width	Up to Approximately 1,200 mm or Customized
Panel Length	Up to Approximately 6,000 mm or Customized
Edge Treatment	Welded Banding Bar, Toe Plate or Custom Frame
Surface Treatment	Hot-Dip Galvanized, Untreated, Painted or Stainless-Steel Finish
Top Surface	Plain or Serrated
Fabrication	Welded, Pressure-Locked or Customized
Fixings	Saddle Clips, M-Clips, C-Clips, Bolts or Customized
Applications	Platforms, Walkways, Stair Treads, Trench Covers and Industrial Flooring
OEM Service	Material, Bar Size, Pitch, Panel Size, Cut-Outs, Surface and Packaging
Place of Origin	Hebei, China
Manufacturer	SHIJIAZHUANG EVERSTAR HARDWARE MACHINERY CO., LTD.

Features

High strength-to-weight ratio

Efficient load-bearing structure

Excellent drainage and ventilation

Plain or serrated surface options

Welded or pressure-locked construction

Carbon steel or stainless-steel options

Durable hot-dip galvanized protection

Easy modular installation and removal

Custom sizes, cut-outs and fixing accessories available

Applications

Art design

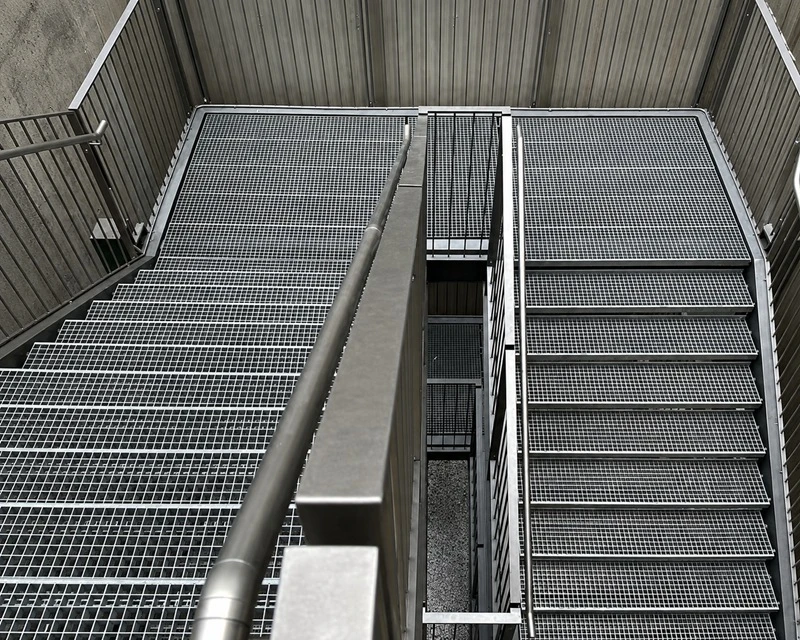

As a staircase

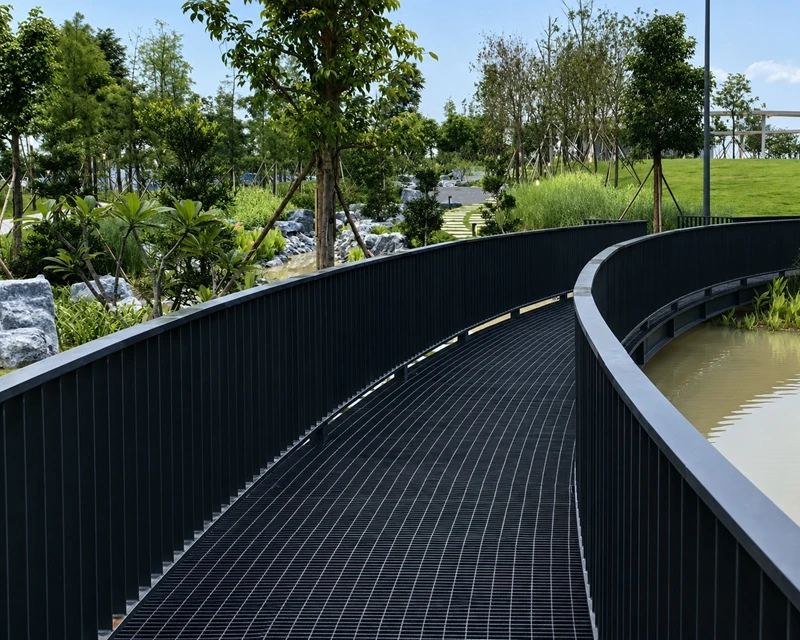

Bridge steel grating

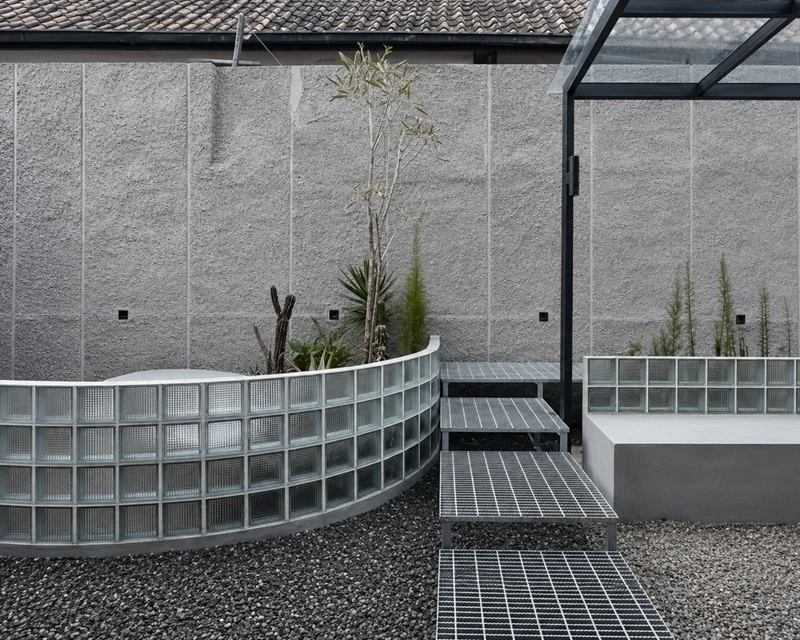

Garden use

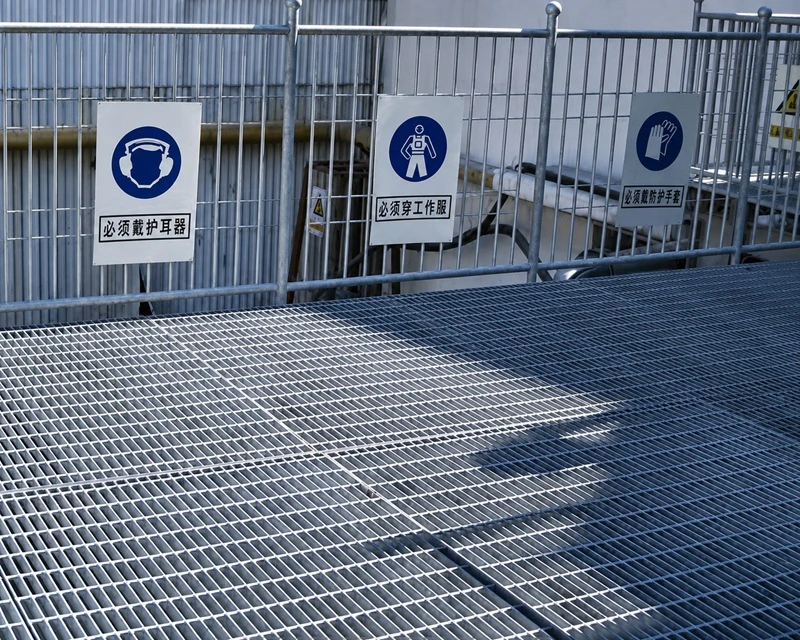

Platform usage

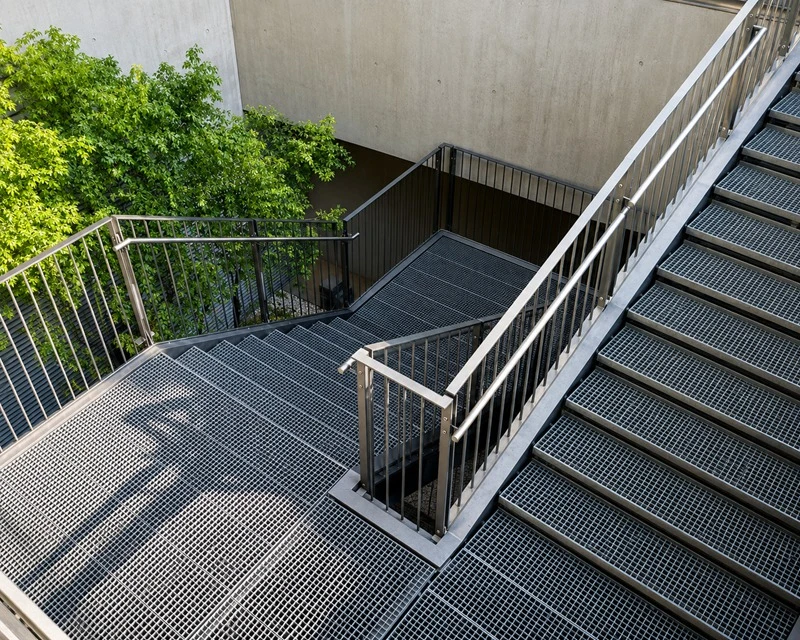

Stair tread

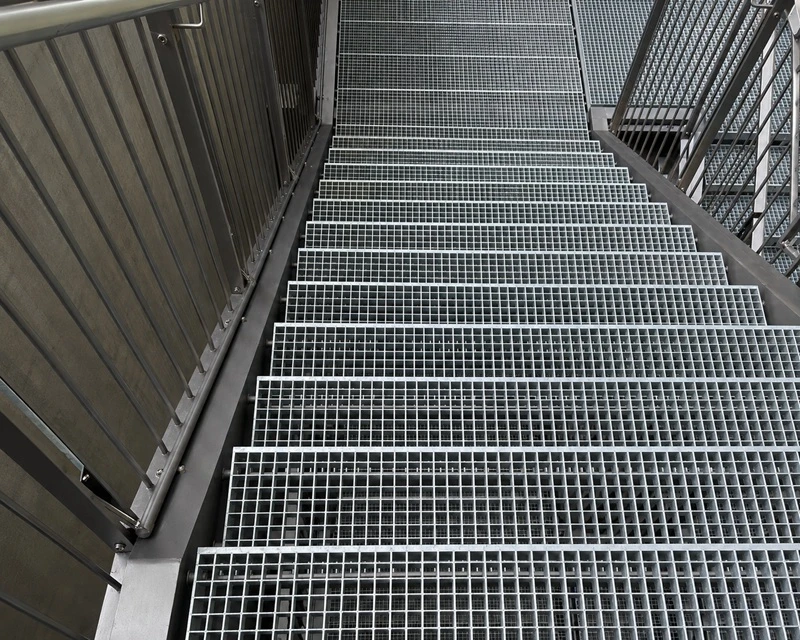

Staircase steel grating step board

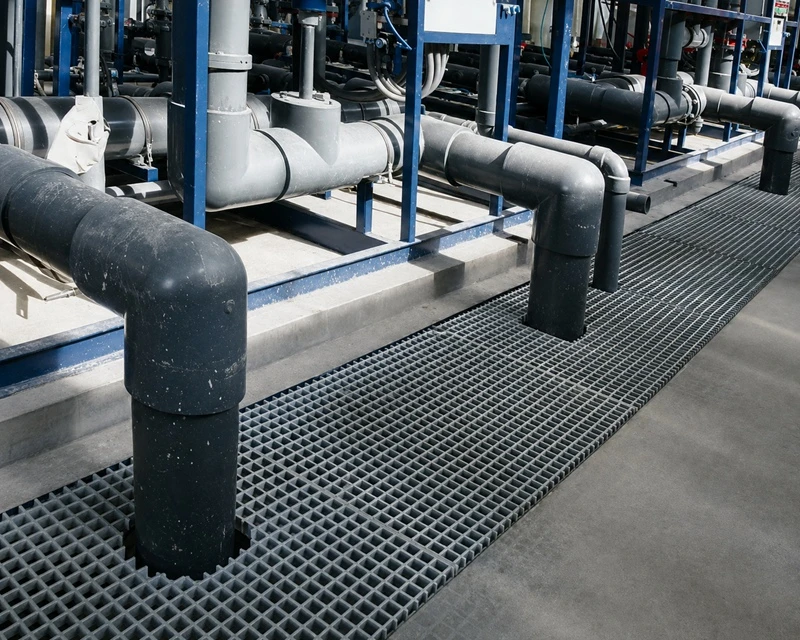

Use of well platform

Packaging and Customization

Parameter	Details
OEM & ODM	OEM and customized specifications are welcome.
Product	Construction Materials / Agriculture / Packaging / Industrial
Category	Hardware
Supply Ability	In Stock
MOQ	Negotiable
Delivery Time	Usually 7–20 days depending on order quantity.
Special Requirements	Customized diameter, roll weight, packaging, labels, and logos are available according to customer requirements.

Packaging

Coil

Carton packing available

Plastic film inside

Pallet packing available

Woven bag outside

Customized packaging accepted
