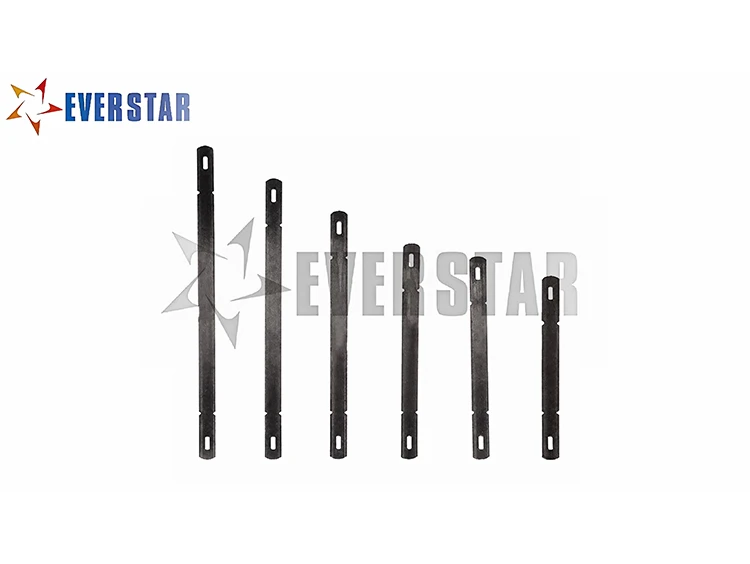

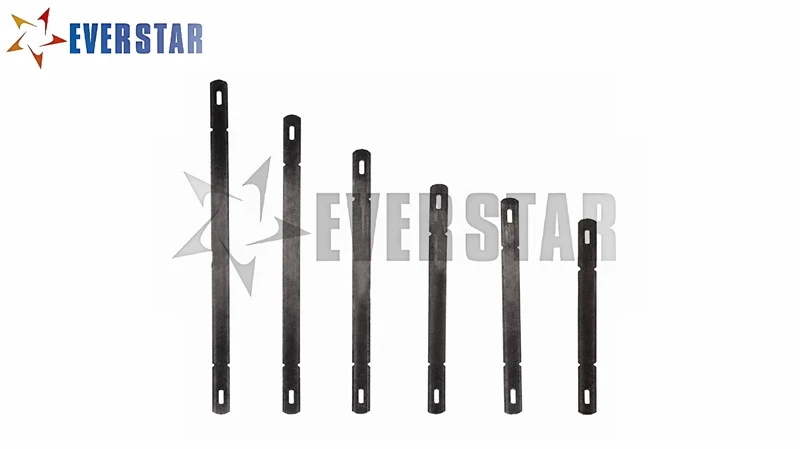

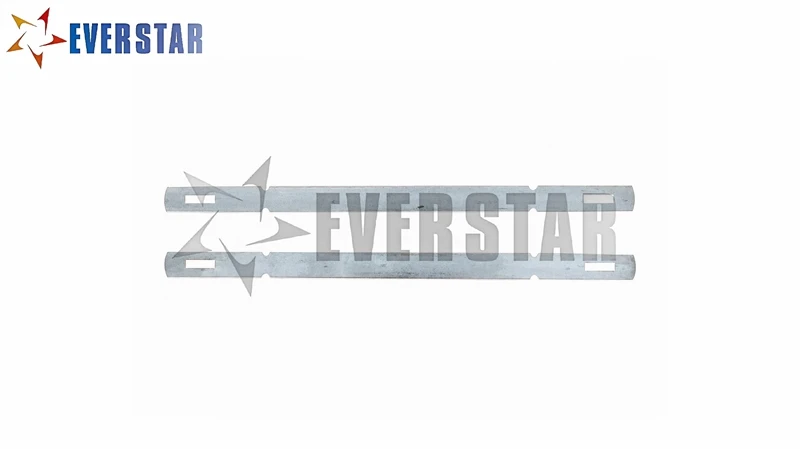

Flat Tie

The EVERSTAR Flat Wall Tie with Wedge Pin is a coordinated connection set designed for compatible Euro-style modular steel-framed plywood formwork systems. The flat tie spans between opposing form panels to maintain the specified concrete-wall thickness, while the wedge pins engage the tie ends and panel side rails to lock the assembly securely during concrete placement.

The system provides a simple, fast and economical method for assembling wall forms with common site tools. Flat-tie length, width, thickness, end-hole geometry, breakback detail and mechanical performance can be customized together with the matching wedge-pin length, taper, thickness and locking profile. Production is available from approved drawings or physical samples.

Inquire Now Next Products

Specifications

Item	Flat Wall Tie	Wedge Pin
Material	Selected carbon steel	High-strength carbon steel
Structure	Long flat steel tie with formed or punched end connections	Tapered flat locking pin with specified retaining profile
Main function	Controls form spacing and transfers tie force	Locks the tie end to the form-panel connection
Common length reference	Approximately 100–1200 mm	Approximately 76 or 79 mm
Common thickness reference	Approximately 1.6–2.5 mm	According to approved drawing or sample
Width	According to tie and panel design	According to panel connection geometry
End geometry	Punched hole or slot; breakback detail when specified	Taper, shoulders and locking edges according to system
Surface condition	According to approved sample or order specification	According to approved sample or order specification
Mechanical performance	According to approved design and EVERSTAR test report	According to approved design and EVERSTAR test report
Reusability	Normally remains in the concrete; exposed ends treated according to design	Reusable when correctly installed, inspected and maintained
Marking	Size, batch code or customer marking available	Batch code or customer marking when space permits
Packaging	Bundles and export pallets	Bags, cartons, pails or export pallets
Service	OEM, ODM, drawing-based and sample-based production	OEM, ODM, drawing-based and sample-based production

Features

Matched flat-tie and wedge-pin system

Accurate concrete wall spacing

Fast hammer-driven wedge locking

High-strength steel construction

Secure and stable panel connection

Precision-formed end holes or slots

Optional controlled-breakback design

Reusable wedge pins

Custom tie and wedge dimensions available

Applications

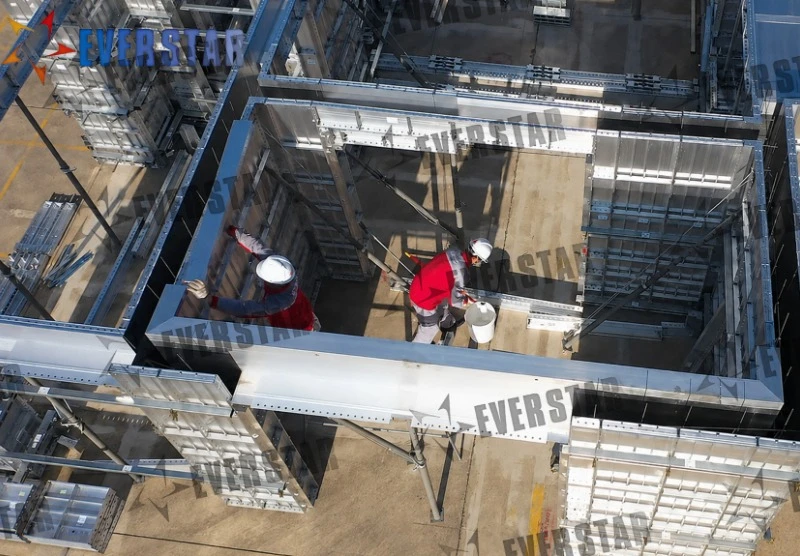

Aluminum Formwork Assembly and Installation

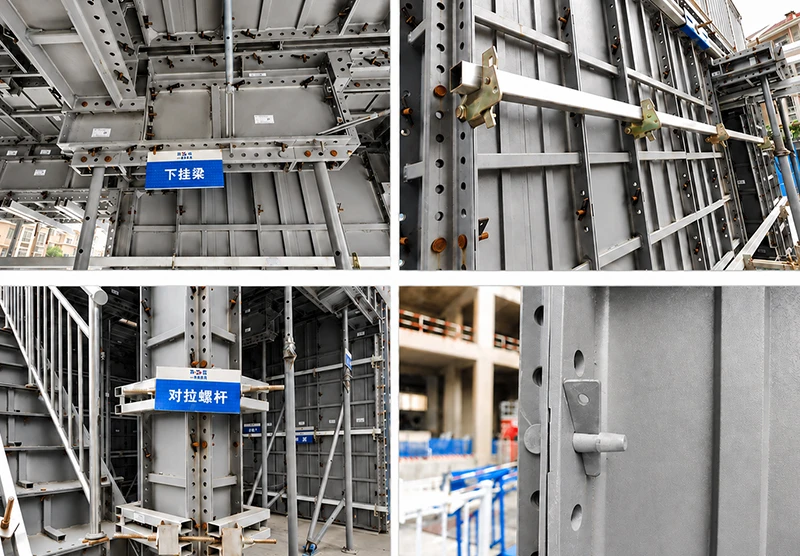

Aluminum Formwork Connections and Accessories

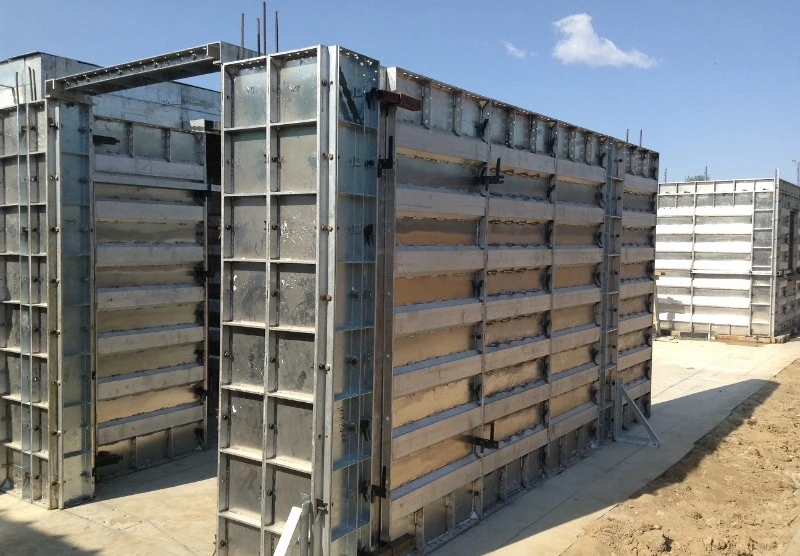

Aluminum Formwork for Concrete Wall Construction

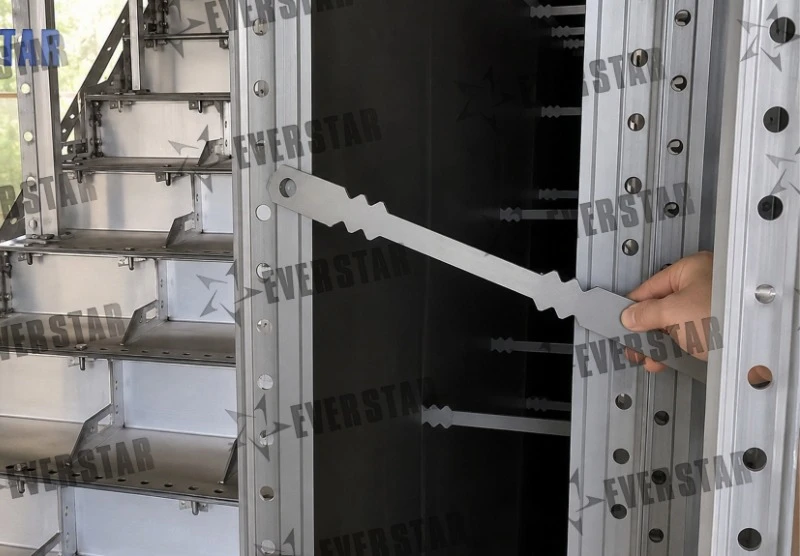

Aluminum Formwork Staircase System

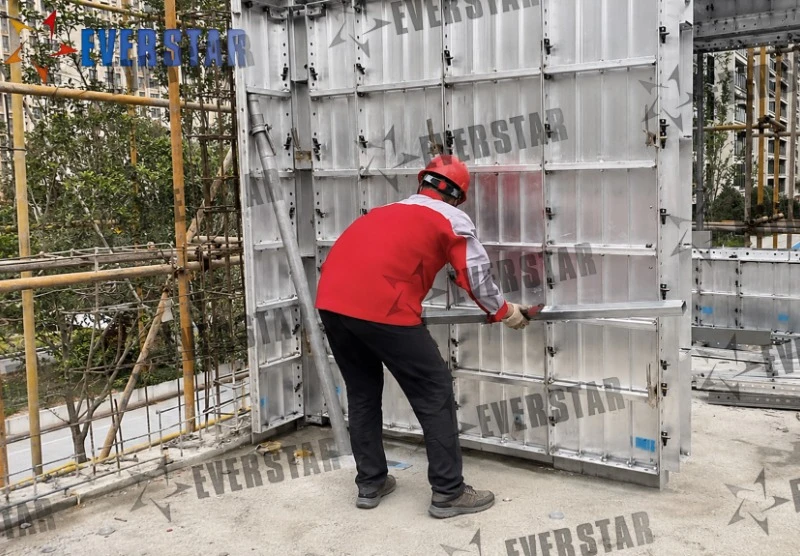

Aluminum Wall Formwork Installation

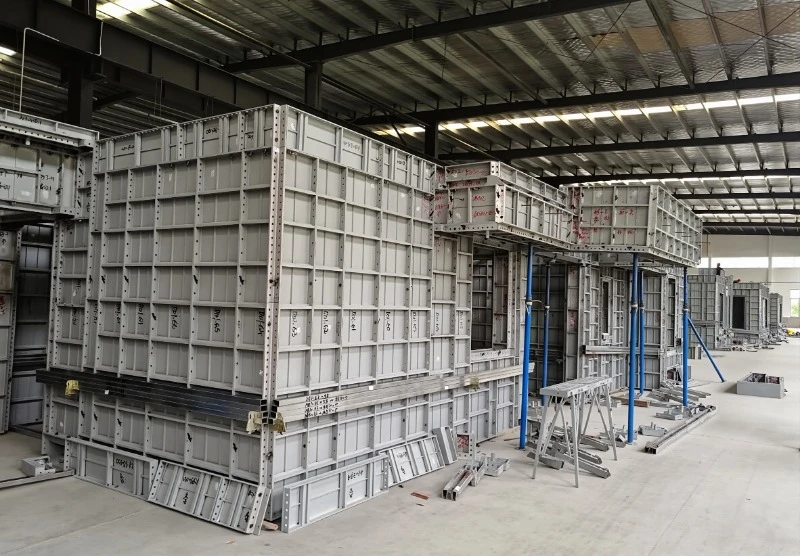

Full-Scale Aluminum Formwork Assembly

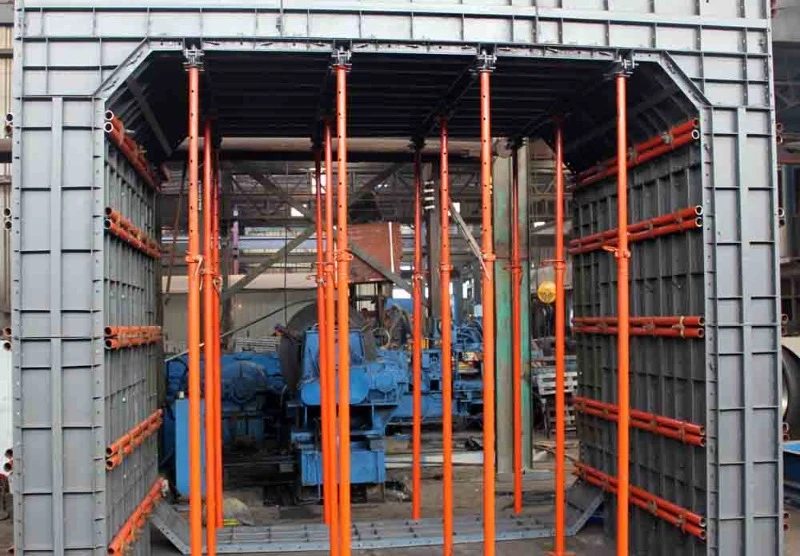

Heavy-Duty Steel Formwork System

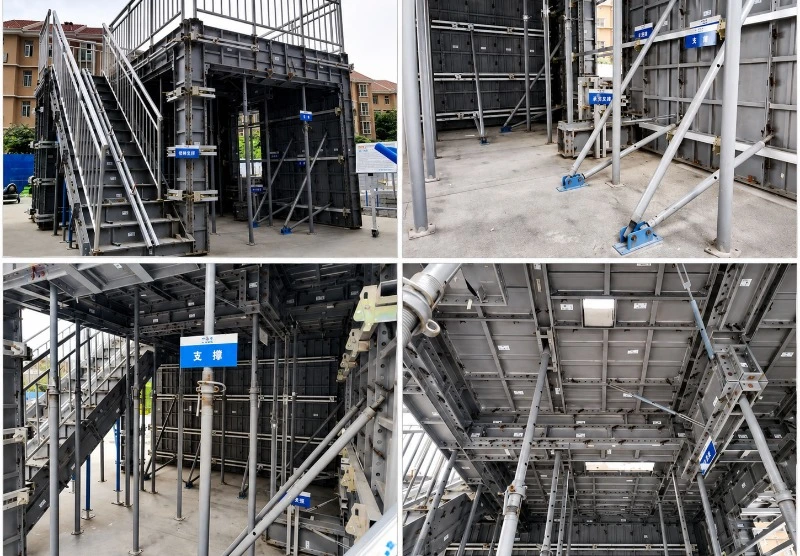

Integrated Wall and Slab Aluminum Formwork System

Packaging and Customization

Parameter	Details
OEM & ODM	OEM and customized specifications are welcome.
Product	Construction Materials / Agriculture / Packaging / Industrial
Category	Hardware
Supply Ability	In Stock
MOQ	Negotiable
Delivery Time	Usually 7–20 days depending on order quantity.
Special Requirements	Customized diameter, roll weight, packaging, labels, and logos are available according to customer requirements.

Packaging

Coil

Carton packing available

Plastic film inside

Pallet packing available

Woven bag outside

Customized packaging accepted
