Ductile Iron Casting Formwork Tie Nut

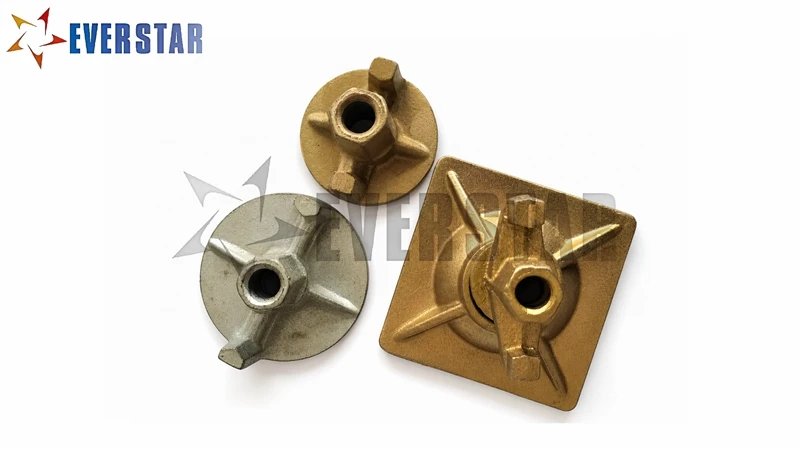

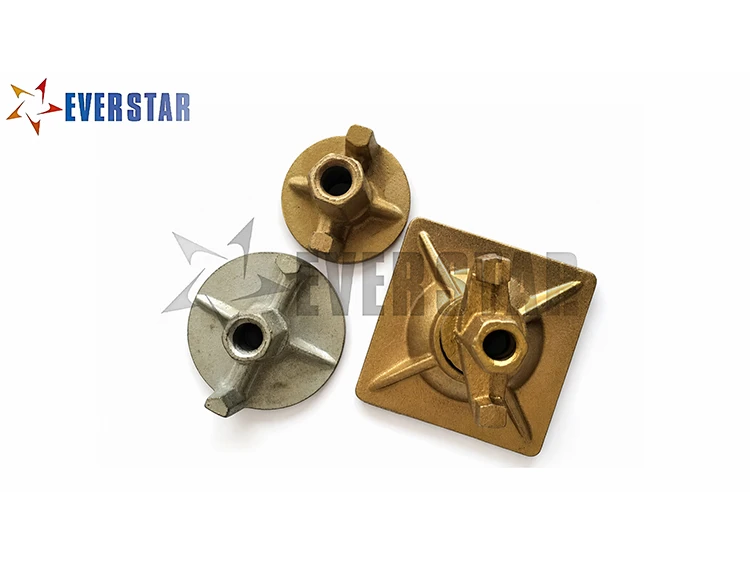

The EVERSTAR Ductile Iron Casting Formwork Tie Nut, also known as a Formwork Wing Nut, is a heavy-duty fastening component used with threaded tie rods in concrete wall formwork systems.

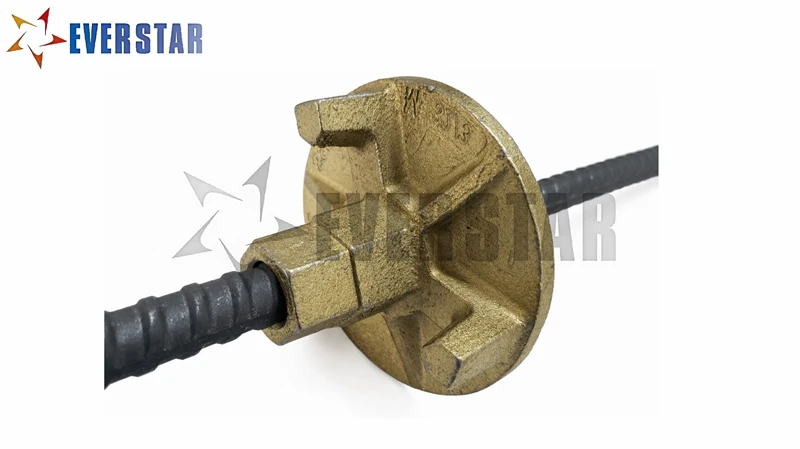

The nut is tightened onto the tie rod outside the formwork to clamp the panels and walers securely in position during concrete pouring. Its integral load-bearing flange distributes the clamping force over the supporting surface, while the two strong wings provide convenient tightening and removal.

Manufactured from ductile cast iron, the tie nut combines casting strength, toughness and impact resistance. Thread size, flange diameter, weight, material grade and surface treatment can be customized to match different formwork tie rod systems and project requirements.

Inquire Now Next Products

Specifications

Item	Specification
Product Name	Ductile Iron Casting Formwork Tie Nut / Wing Nut
Brand	EVERSTAR
Material	Ductile Cast Iron
Optional Material Grades	QT450-10, GGG40, GGG50 or According to Requirement
Manufacturing Process	Casting, Thread Machining and Surface Treatment
Nut Design	Integral Round Flange with Two Wings
Common Thread	15/17 mm or DW15 Formwork Tie Rod Thread
Optional Thread Sizes	D12, D15, D20 or Customized
Common Flange Diameter	70–120 mm
Common Unit Weight	Approximately 0.30–0.90 kg
Surface Treatment	Natural Black, Zinc-Plated, Hot-Dip Galvanized or Painted
Application	Concrete Wall and Column Formwork Tie Systems
Load Capacity	Confirmed According to Product Design and Test Requirement
Packaging	Woven Bags, Wooden Cases or Pallets
OEM / ODM	Available

Features

Heavy-duty ductile cast-iron construction

High strength, toughness and impact resistance

Integral load-bearing flange

Efficient clamping-force distribution

Accurate coarse formwork thread

Fast and reliable tie-rod engagement

Strong two-wing design

Reusable for multiple formwork cycles

Custom thread, flange, weight and surface finish available

Applications

Aluminum Formwork Assembly and Installation

Aluminum Formwork Connections and Accessories

Aluminum Formwork for Concrete Wall Construction

Aluminum Formwork Staircase System

Aluminum Wall Formwork Installation

Full-Scale Aluminum Formwork Assembly

Heavy-Duty Steel Formwork System

Integrated Wall and Slab Aluminum Formwork System

Packaging and Customization

Parameter	Details
OEM & ODM	OEM and customized specifications are welcome.
Product	Construction Materials / Agriculture / Packaging / Industrial
Category	Hardware
Supply Ability	In Stock
MOQ	Negotiable
Delivery Time	Usually 7–20 days depending on order quantity.
Special Requirements	Customized diameter, roll weight, packaging, labels, and logos are available according to customer requirements.

Packaging

Coil

Carton packing available

Plastic film inside

Pallet packing available

Woven bag outside

Customized packaging accepted
