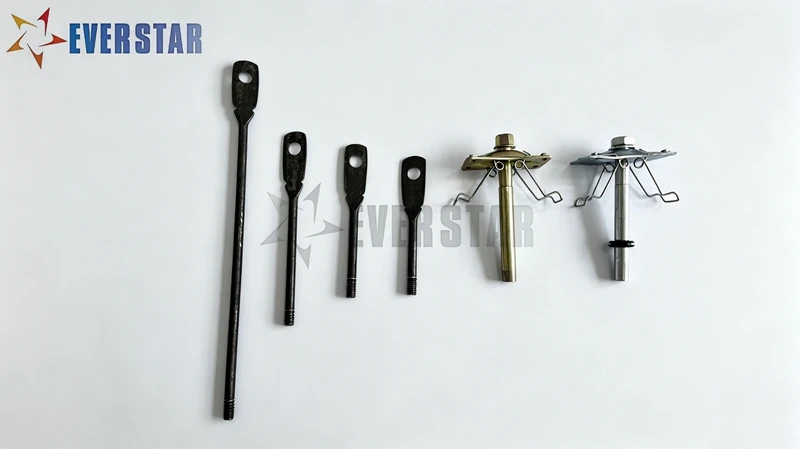

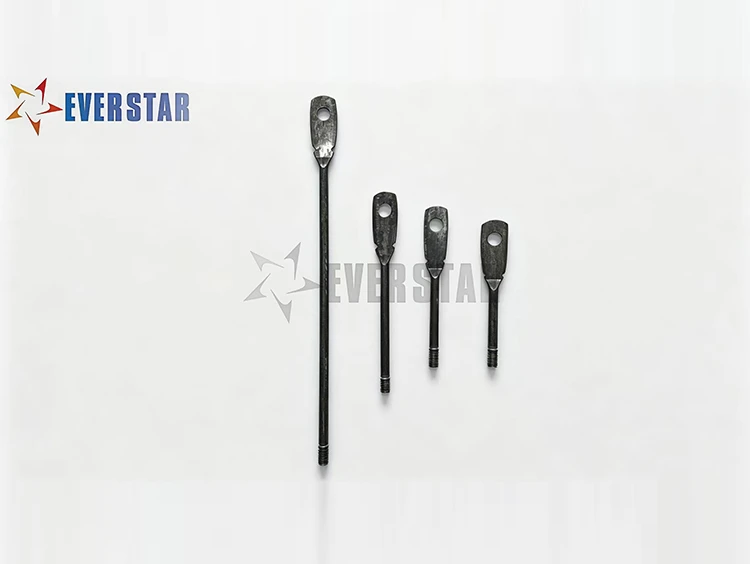

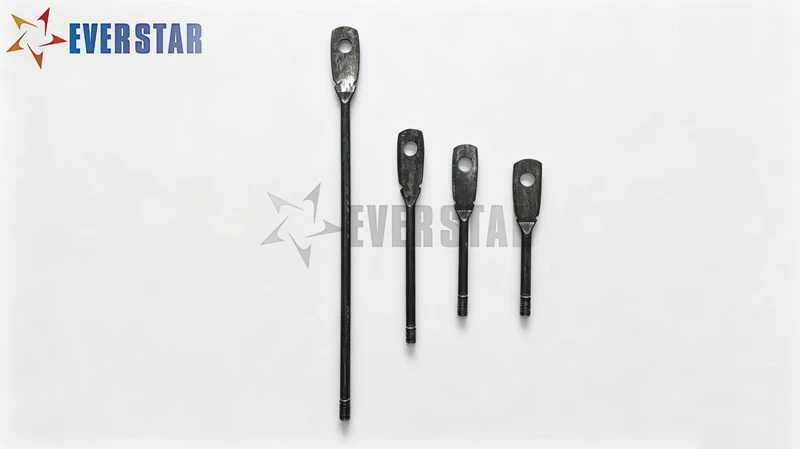

Korea-Type Sepa Tie for Aluminum Formwork Systems

EVERSTAR Korea-Type Sepa Ties are carbon-steel connecting and spacing components manufactured for compatible aluminum formwork systems. Installed at the designated wall-form connection, the tie works with the approved clamp, one-touch unit, bolt or other locking accessory to maintain the required relationship between opposing formwork panels and transfer the connection force generated during concrete placement.

Inquire Now Next Products

Specifications

Item	Specification
Product name	Korea-Type Aluminum Formwork Sepa Tie
Common search names	AL Sepa Tie, Formwork Sepa Tie, Korea-Type Sepa Tie, Aluminum Formwork Tie
Brand	EVERSTAR
Material	Carbon steel or customer-specified steel grade
Basic structure	Straight tie body with drawing-defined connection ends
Common order reference	Approximately 120–400 mm overall length
Extended market reference	Approximately 100–1200 mm overall length
Effective length	According to wall dimension and connection reference points
Cross-section	Width, thickness or diameter according to approved drawing
End details	Plain, flattened, formed, holed, slotted, shouldered or custom
Matching connection	One-touch unit, sliding form clamp, compatible bolt, pin or drawing-defined locking accessory
Manufacturing process	Material preparation, straightening, cutting, flattening or forming, stamping or punching, deburring and inspection as applicable
Heat treatment	According to confirmed steel grade and mechanical-performance requirement, when specified
Surface condition	Natural steel surface or according to the approved order specification
Mechanical performance	According to the approved connection design and EVERSTAR test report
Reusability	Project- and system-dependent; confirm whether the tie is removable or remains in the concrete
Marking	Item code, batch identification or customer mark when geometry permits
Packaging	Bundles, bags, wooden cases or export pallets
Service	OEM, ODM, drawing-based and sample-based production

Features

Strong carbon-steel construction

Accurate panel spacing and alignment

Controlled effective tie length

Straight and consistent tie body

System-specific connection ends

Holed, slotted or formed-end options

Compatible with clamps, pins and one-touch units

Wide range of standard lengths

Custom dimensions and geometries available

Applications

Aluminum Formwork Assembly and Installation

Aluminum Formwork Connections and Accessories

Aluminum Formwork for Concrete Wall Construction

Aluminum Formwork Staircase System

Aluminum Wall Formwork Installation

Full-Scale Aluminum Formwork Assembly

Heavy-Duty Steel Formwork System

Integrated Wall and Slab Aluminum Formwork System

Packaging and Customization

Parameter	Details
OEM & ODM	OEM and customized specifications are welcome.
Product	Construction Materials / Agriculture / Packaging / Industrial
Category	Hardware
Supply Ability	In Stock
MOQ	Negotiable
Delivery Time	Usually 7–20 days depending on order quantity.
Special Requirements	Customized diameter, roll weight, packaging, labels, and logos are available according to customer requirements.

Packaging

Coil

Carton packing available

Plastic film inside

Pallet packing available

Woven bag outside

Customized packaging accepted
