Aluminum Formwork Wedge Pin

EVERSTAR Aluminum Formwork Locking Wedges are high-strength tapered steel components designed to work with compatible round, flat-head or other slotted form pins. After the form pin passes through the aligned panel and wall-tie connection, the wedge is driven through the pin slot to tighten and lock the aluminum formwork assembly.

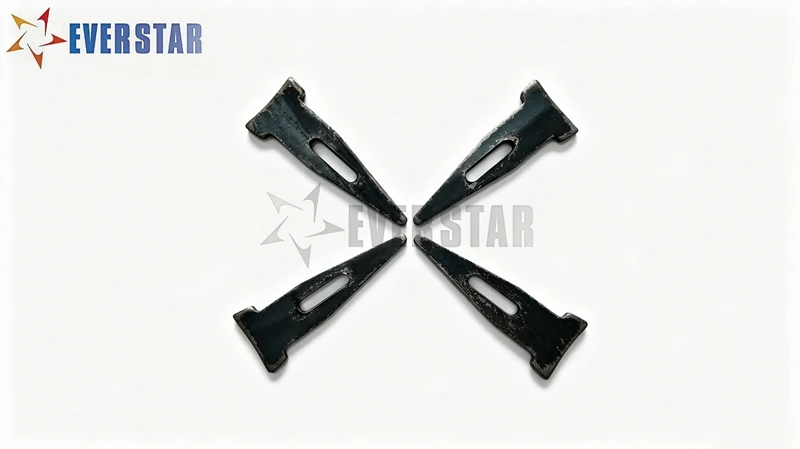

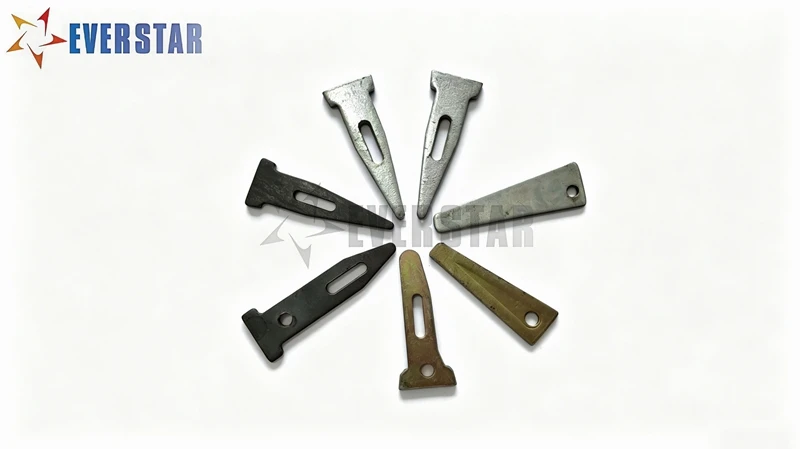

The product range includes straight wedges, curved wedges, T-head wedges, slotted wedges and wedges with retaining holes. Their tapered geometry converts hammer-driven movement into progressive clamping force, helping close panel joints and secure wall ties during concrete placement. Overall length, taper, width, thickness, head profile, slot or hole geometry, material performance, surface condition and packaging can be manufactured according to approved drawings or physical samples.

Inquire Now Next Products

Specifications

Item	Specification
Product name	Aluminum Formwork Steel Locking Wedge
Common search names	Aluminum Formwork Wedge Pin, Formwork Flat Wedge, Pin Wedge
Brand	EVERSTAR
Material	High-strength carbon steel or specified alloy steel
Structure	Tapered flat locking plate with optional head, slot or retaining hole
Common length reference	Approximately 70–100 mm
Common thickness reference	Approximately 2.5–3.5 mm
Width and taper	According to the matching pin slot and locking requirement
Matching hardware	Round-head pins, flat-head pins, stub pins, standard pins and long pins
Manufacturing process	Precision blanking or cutting, punching, forming, deburring, optional heat treatment and inspection
Heat treatment	According to confirmed material, hardness and service requirements
Surface condition	According to approved sample or order specification
Mechanical performance	According to approved design and EVERSTAR test report
Reusability	Reusable when correctly installed, inspected and maintained
Marking	Batch code or customer marking when the available area permits
Packaging	Bags, cartons, pails, wooden cases or export pallets
Service	OEM, ODM, drawing-based and sample-based production

Features

High-strength tapered steel construction

Fast hammer-driven locking

Progressive and secure clamping

Narrow tip for easy insertion

Wide striking end for site operation

Straight, curved or T-head options

Slotted and retaining-hole designs available

Reusable for repeated formwork cycles

Custom taper, size, hardness and packaging available

Applications

Aluminum Formwork Assembly and Installation

Aluminum Formwork Connections and Accessories

Aluminum Formwork for Concrete Wall Construction

Aluminum Formwork Staircase System

Aluminum Wall Formwork Installation

Full-Scale Aluminum Formwork Assembly

Heavy-Duty Steel Formwork System

Integrated Wall and Slab Aluminum Formwork System

Packaging and Customization

Parameter	Details
OEM & ODM	OEM and customized specifications are welcome.
Product	Construction Materials / Agriculture / Packaging / Industrial
Category	Hardware
Supply Ability	In Stock
MOQ	Negotiable
Delivery Time	Usually 7–20 days depending on order quantity.
Special Requirements	Customized diameter, roll weight, packaging, labels, and logos are available according to customer requirements.

Packaging

Coil

Carton packing available

Plastic film inside

Pallet packing available

Woven bag outside

Customized packaging accepted
