Aluminum Formwork Standard Wedge Bolt

EVERSTAR Construction Formwork Wedge Pins are round steel connection pins designed for fast assembly of compatible aluminum formwork panels and related accessories. Each pin passes through aligned panel or tie connection holes, and a separate straight or curved steel wedge is driven through the longitudinal slot near the pin end to lock the components securely together.

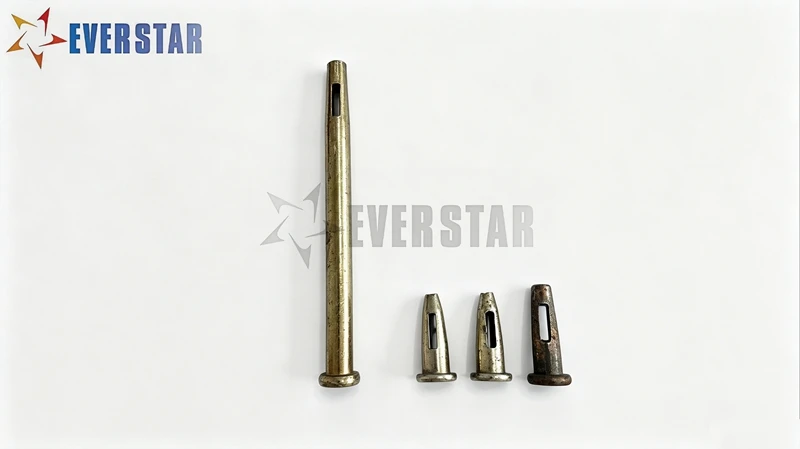

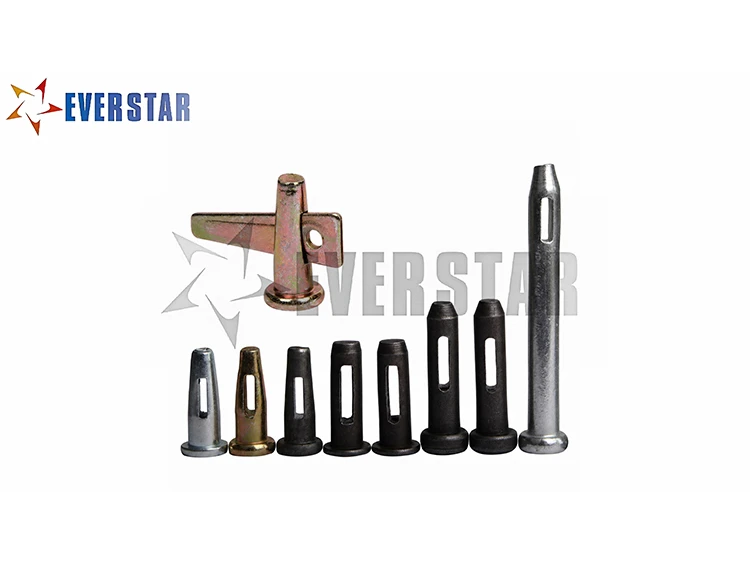

The product family includes stub pins, short pins, standard pins and long pins for different connection thicknesses and formwork configurations. The pins shown feature a round retaining head, cylindrical body, tapered insertion end and elongated wedge slot. Diameter, length, head geometry, slot dimensions, body construction, steel grade, hardness, surface condition and packaging can be manufactured according to approved drawings or physical samples.

Inquire Now Next Products

Specifications

Item	Specification
Product name	Construction Formwork Wedge Pin
Alternative names	Round Form Pin, Slotted Formwork Pin, Stub Pin, Short Pin, Long Pin
Brand	EVERSTAR
Material	Carbon steel or specified alloy steel
Structure	Round pin with retaining head and elongated wedge slot
Body options	Solid, semi-hollow or specified tubular construction
Common diameter reference	Approximately 16 mm; system-specific
Common length references	50, 52, 55, 65, 135 and 195 mm
Other dimensions	Manufactured according to approved drawing or sample

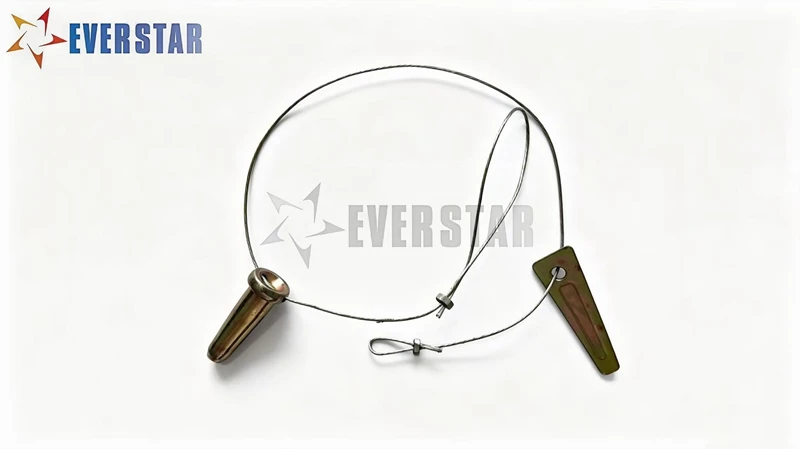

Matching component	Straight wedge or curved wedge
Manufacturing process	Cutting, head forming, body forming or machining, slot forming, deburring and inspection
Heat treatment	According to confirmed material and hardness requirements
Surface condition	According to approved sample or order specification
Mechanical performance	According to confirmed specification and EVERSTAR test report
Reusability	Reusable when correctly installed, inspected and maintained
Packaging	Bags, cartons, pails, wooden cases or export pallets
Service	OEM, ODM, drawing-based and sample-based production

Features

High-strength steel construction

Strong cylindrical pin body

Stable round retaining head

Precision-formed elongated wedge slot

Tapered end for guided insertion

Fast and secure pin-and-wedge locking

Stub, short, standard and long options

Compatible with straight or curved wedges

Custom dimensions, hardness and packaging available

Applications

Aluminum Formwork Assembly and Installation

Aluminum Formwork Connections and Accessories

Aluminum Formwork for Concrete Wall Construction

Aluminum Formwork Staircase System

Aluminum Wall Formwork Installation

Full-Scale Aluminum Formwork Assembly

Heavy-Duty Steel Formwork System

Integrated Wall and Slab Aluminum Formwork System

Packaging and Customization

Parameter	Details
OEM & ODM	OEM and customized specifications are welcome.
Product	Construction Materials / Agriculture / Packaging / Industrial
Category	Hardware
Supply Ability	In Stock
MOQ	Negotiable
Delivery Time	Usually 7–20 days depending on order quantity.
Special Requirements	Customized diameter, roll weight, packaging, labels, and logos are available according to customer requirements.

Packaging

Coil

Carton packing available

Plastic film inside

Pallet packing available

Woven bag outside

Customized packaging accepted
